Multi-use barrel
Food sage
With KTW approval (Guidelines for the Hygienic Assessment of Organic Materials in contact with drinking water)
Permanently leak-proof
Made of one piece without welds
Solid and exchangeable
Welded-on PE-flange 2" with double nipple / 3" with double nipple on multi-use barrel 8.000 litres
Elevated filling dome
ø 38 cm, integrally moulded, with anti-slosh baffle
PE-lid with hinge
Air valve
Firm grip on everything
Four integrally moulded handles for lifting or fastening
Hot stuff
Long-term use temperature max. 60 °C
Details
- Food sageWith KTW approval (Guidelines for the Hygienic Assessment of Organic Materials in contact with drinking water)
- Permanently leak-proofMade of one piece without welds
- Solid and exchangeableWelded-on PE-flange 2" with double nipple / 3" with double nipple on multi-use barrel 8.000 litres
- Elevated filling domeø 38 cm, integrally moulded, with anti-slosh baffle
- PE-lid with hingeAir valve
- Firm grip on everythingFour integrally moulded handles for lifting or fastening
- Hot stuffLong-term use temperature max. 60 °C
Request Multi-use barrels
For decades Speidel has been known for the production of multi-use barrels
For decades Speidel has been known for the production of multi-use barrels, once made of glass fibre reinforced plastic, now made of Polyethylen. Nowadays, barrels of all kinds have proven indispensable almost everywhere, primarily with regard to the transportation of UAN and water. Our barrels render their services as integral tools in almost every local community and agrarian enterprise. Many companies all over Europe praise their longevity.
Our multi-use container is made of high-quality, UV-resistant and recyclable PE-material. It is particularly thick-walled to ensure perfect stability. The discharge port 2" ET is located on the lower part of the tank’s front side; on its upper part you find the waste drainage nozzle ¾ IT, locked with a blind cap.
Multi-use barrel green
Our green multi-use barrel has KTW approval for drinking water. You can request it from us using the following table or order it directly from our online shop.
| product code | capacity litre |
length cm |
width cm |
height cm |
weight kg |
|
|---|---|---|---|---|---|---|
| 12050-01 | 500 | 143 | 87 | 67 | 30 | Enquiry |
| 12100-01 | 1.000 | 149 | 123 | 91 | 60 | Enquiry |
| 12200-01 | 2.000 | 196 | 147 | 109 | 105 | Enquiry |
| 12300-01 | 3.000 | 233 | 164 | 120 | 165 | Enquiry |
| 12400-01 | 4.000 | 289 | 171 | 121 | 230 | Enquiry |
| 12500-01 | 5.000 | 273 | 197 | 136 | 300 | Enquiry |
| 12800-01 | 8.000 | 300 | 220 | 201 | 370 | Enquiry |
Dimension and weight data +/- 2 percent. In Euro plus VAT an delivery costs.

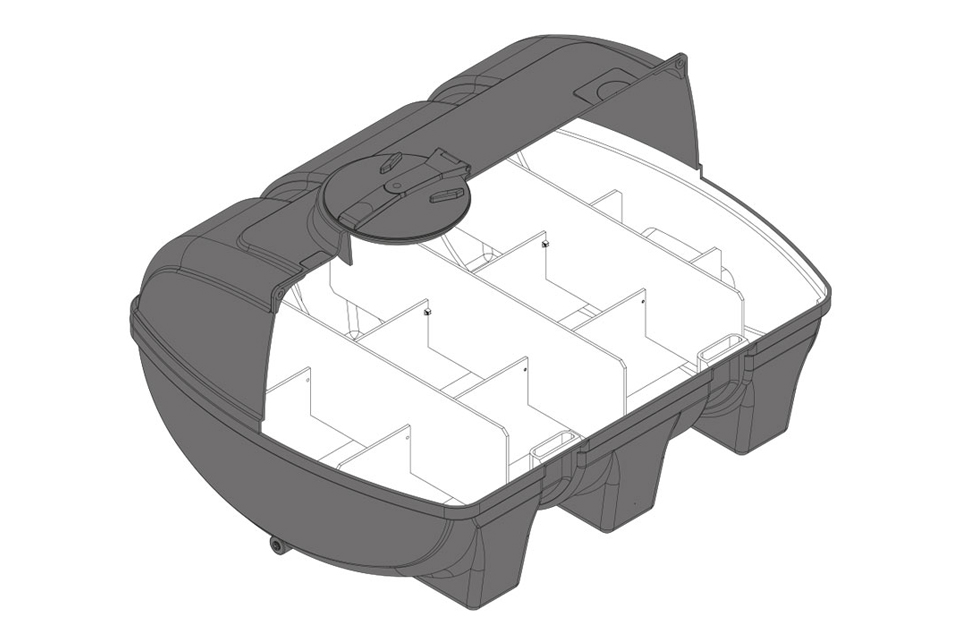

Multi-use barrel with anti slosh baffle green
Our green multi-use barrel with anti slosh baffle keeps the tank contents in check even during heavy movements – for longitudinal mounting of the tank on a vehicle.
| product code | capacity litre |
length cm |
width cm |
height cm |
weight kg |
|
|---|---|---|---|---|---|---|
| 12100-01-8324 | 1.000 | 149 | 123 | 91 | 70 | Enquiry |
| 12200-01-8325 | 2.000 | 196 | 147 | 109 | 120 | Enquiry |
| 12500-01-8352 | 5.000 | 273 | 197 | 136 | 330 | Enquiry |
Dimension and weight data +/- 2 percent. In Euro plus VAT an delivery costs.
Multi-use barrel yellow
Our yellow multi-use barrel has KTW approval for drinking water. You can request it from us using the following table or order it directly from our online shop.
| product code | capacity litre |
length cm |
width cm |
height cm |
weight kg |
|
|---|---|---|---|---|---|---|
| 12100 | 1.000 | 149 | 123 | 91 | 60 | Enquiry |
| 12200 | 2.000 | 196 | 147 | 109 | 105 | Enquiry |
Dimension and weight data +/- 2 percent. In Euro plus VAT an delivery costs.
Multi-use barrel with anti slosh baffle yellow
Our yellow multi-use barrel with anti slosh baffle keeps the tank contents in check even during heavy movements – for longitudinal mounting of the tank on a vehicle.
| product code | capacity litre |
length cm |
width cm |
height cm |
weight kg |
|
|---|---|---|---|---|---|---|
| 12100-8324 | 1.000 | 149 | 123 | 91 | 70 | Enquiry |
| 12100-8325 | 2.000 | 196 | 147 | 109 | 120 | Enquiry |
Dimension and weight data +/- 2 percent. In Euro plus VAT an delivery costs.
